Wireless

GBH T500

GBH t500 — View 1
Music Headsets

GBH T500

Features

  • Desk Phones Support
  • Crystal Clear Voice
  • Dual Set Available
  • Softphones / PC Compatible
  • Strong Cable
  • Acoustic Protection
  • Bluetooth Connectivity
CONTROLS & PORTS
  • Micro USB Port
  • ANC Switch Button
  • ANC Indicator Light
  • 3.5 mm Audio Cable Port
  • Power Indicator Light
  • Volume Down / Next Song
  • Power Button
  • Volume Up / Previous Song

Technical Specifications

Audio:
  • Driver Diameter: Φ27 mm
  • Frequency Response: 20 Hz – 20 kHz
  • Impedance: 32 Ω ± 15%
  • Rated Power: 15 mW
  • Operating Voltage: 1.1 – 4.5 V
    • Microphone:
  • Sensitivity: -42 ± 3 dB
    • General:
  • Maximum Power: 50 mW
  • Audio Port: 3.5 mm + USB
  • Cable Length: 1.5 m + 1.2 m
  • Compliance: RoHS, CE, FCC, KC, GMP, ISO 9001:2015

    • Technical Specifications


    Specification Details
    Speaker Diameter 40 mm
    Impedance 32Ω
    Sensitivity -42 ± 3dB
    Operating Voltage 4.2V
    Frequency Response 30 - 16000Hz
    Wireless Version CSR 4.0
    Receiver Range 10m
    Carrier Frequency 2402MHz - 2480MHz
    Transmit Power 4dBm (Max)
    SNR 92dBm
    Noise Cancellation Active Noise Cancellation



    What We Connect To

    Compatible Connectors

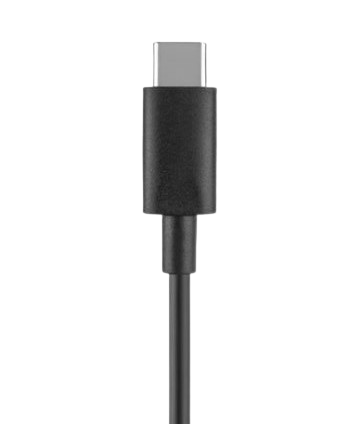

    C Type Connector
    C Type
    USB Connector
    USB
    USB Connector
    Rj-11
    USB Connector
    3.5mm

    Compatible With

    Globally Certified

    Compliance
