Aviation
GBH A-21
Aviation Headsets
Features
- Dual plugs for general aircraft.
- Passive Noise Reduction Rating (NRR): 23dB.
- Comfortable half gel half foam ear pad.
- Noise-cancelling electret microphone as standard, dynamic microphone can be optional.
- Earphone Plug: PJ-055 (2.5" F6.3 plug).
- Microphone Plug: PJ-068 (2.06" F3.2 plug).
- Straight cord from headset to molded plug, 130CM.
- Colors: Black, Blue, Yellow, Green, Gray, Pink, Red, Orange.

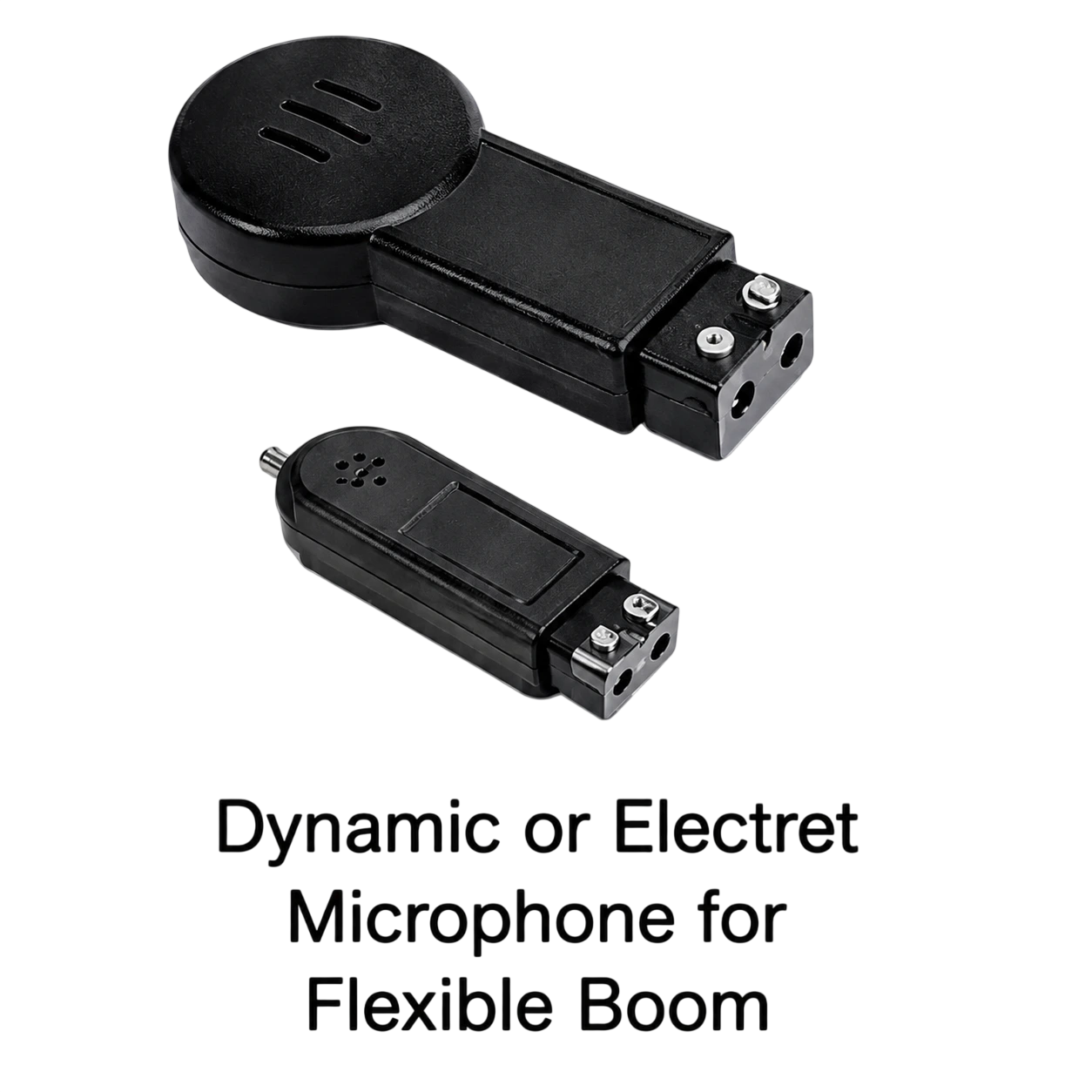

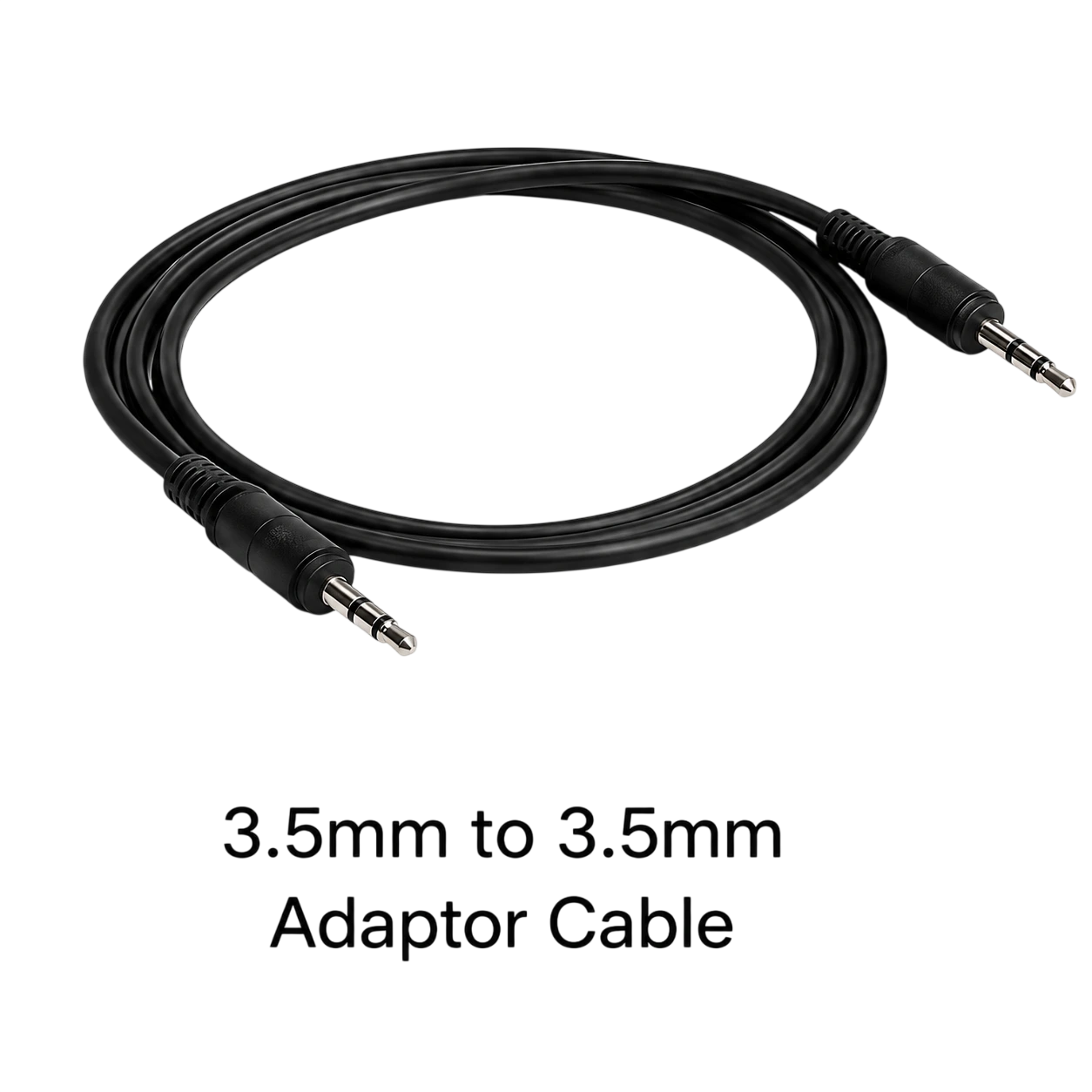

- Accessories option available: 3.5mm to 3.5mm adaptor cable, dynamic or electret microphone for flexible boom, and control module.
Technical Specifications
- Speaker Plug: 250mm Diameter, Gold Plated
- Speaker Ohms (Ω): 150Ω MONO, 300Ω STEREO
- Speaker Range: 20Hz – 17,000Hz
- Head Band: Air Cell Ear Seal, Silicon Gel, Foam
- Microphone Plug: 206mm Diameter, Gold Plated
- Microphone Range: 300Hz – 8,000Hz
- Microphone Source (Ω): 220Ω – 2,200Ω
What We Connect To
Compatible Connectors

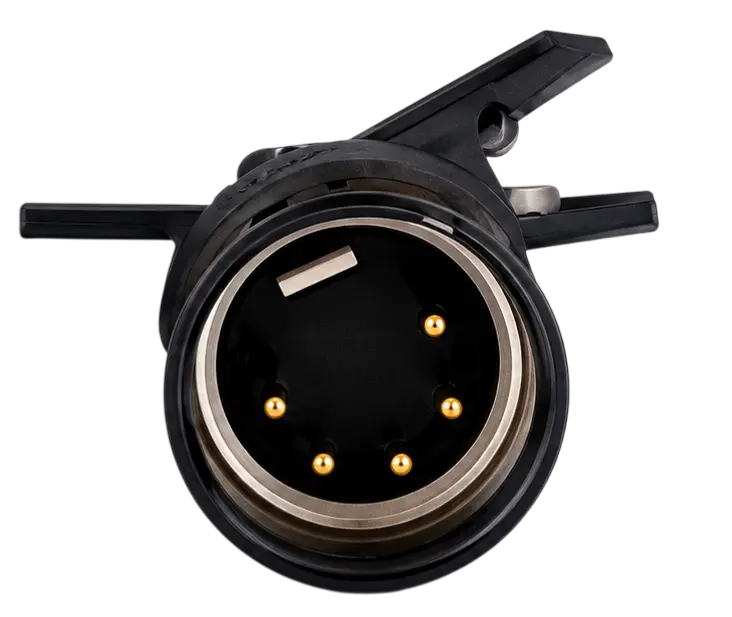

Airbus 5 Pin

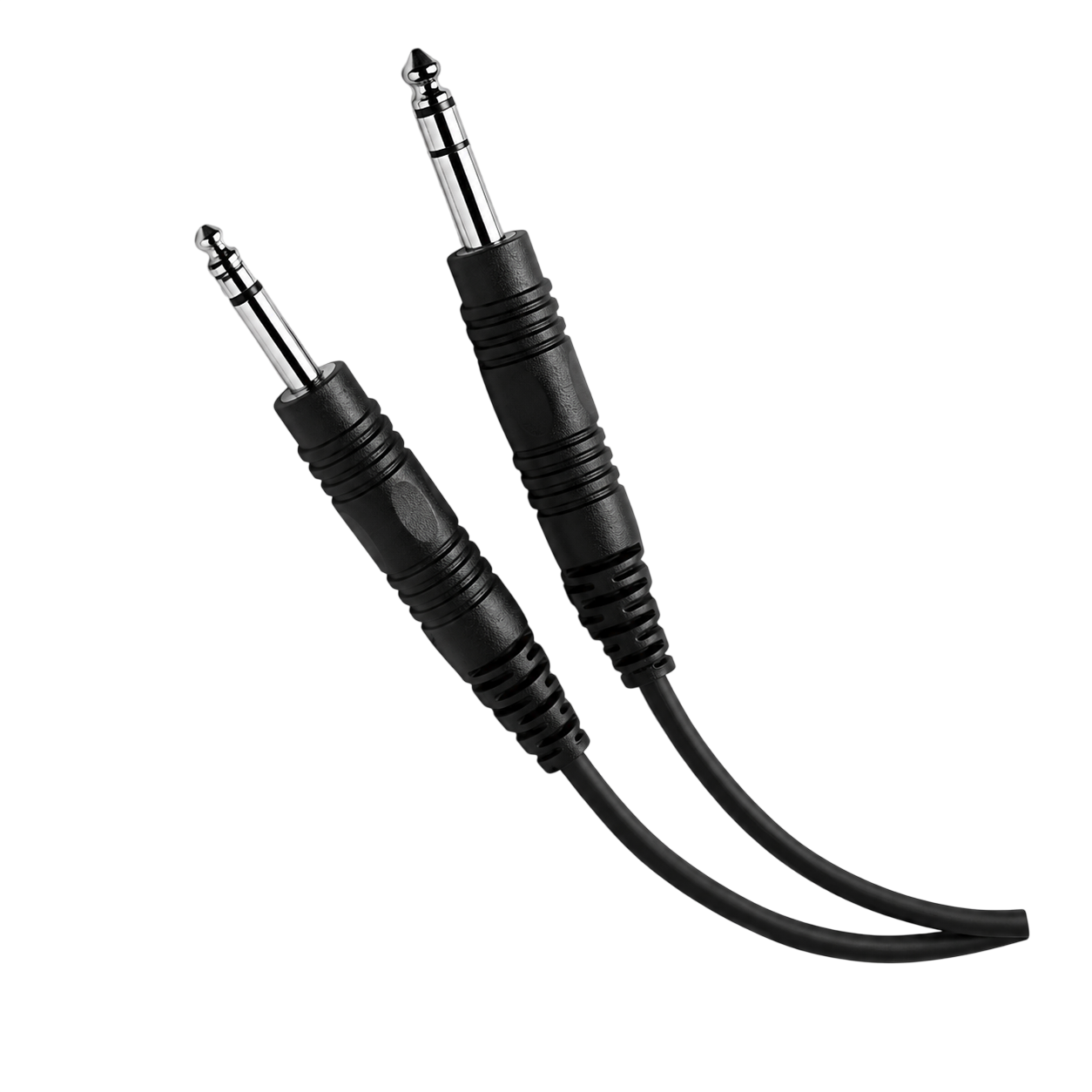

Boeing Fixed Wings

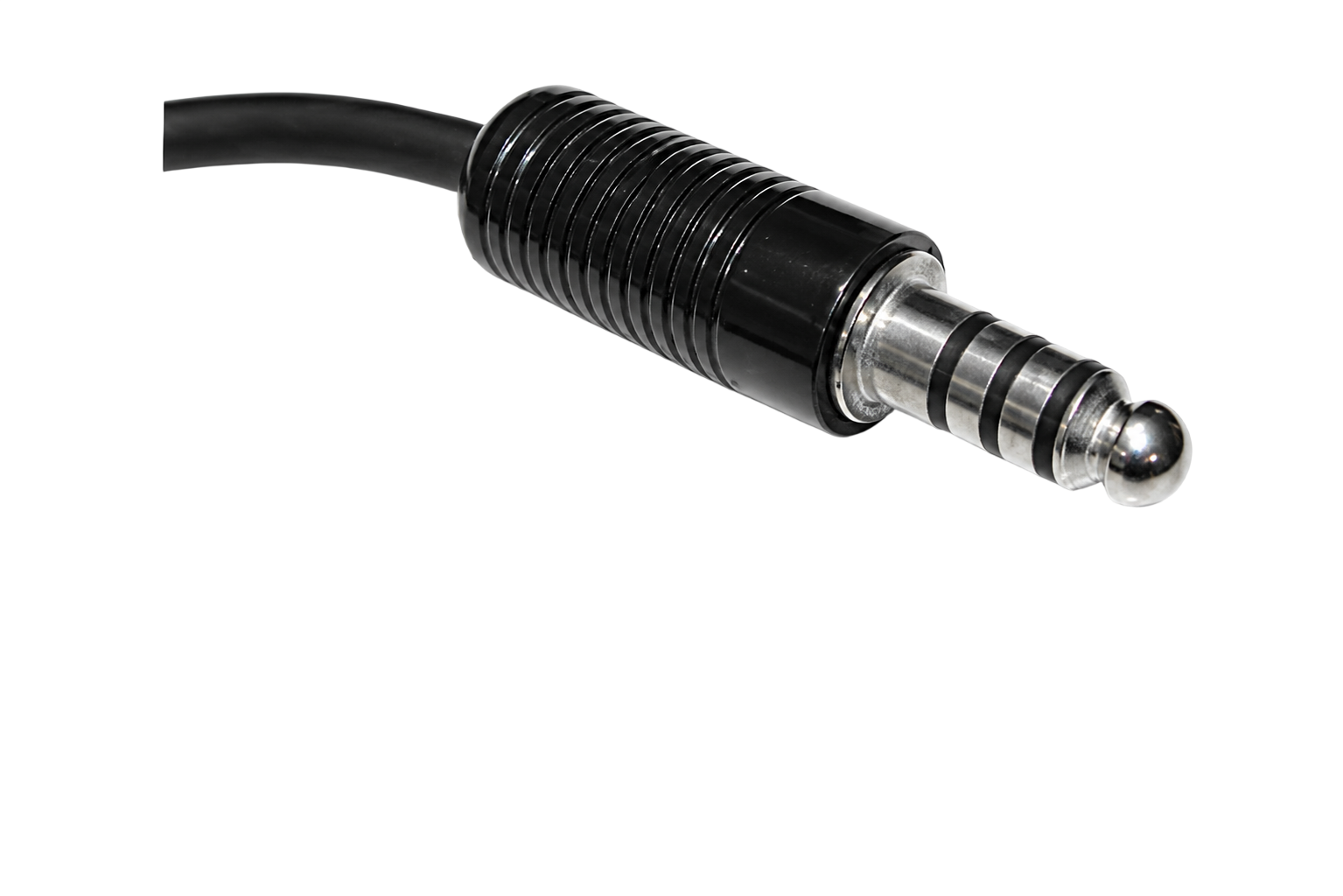

Helicopter Plug
Compatible With
Globally Certified
Compliance
